Szczegóły Produktu
Miejsce pochodzenia: Szanghaj
Nazwa handlowa: TANKII
Orzecznictwo: ROHS,ISO9001
Numer modelu: CuNi44
Warunki płatności i wysyłki
Minimalne zamówienie: 20 kg
Cena: usd+15~30+kg
Szczegóły pakowania: szpula, karton, paleta
Czas dostawy: 8-20 dni
Zasady płatności: L / C, T / T, Western Union
Możliwość Supply: 200 + TON + MIESIĄC
Materiał: |
Miedź niklowa |
Kształt: |
okrągły |
rozmiar: |
0,01-10 mm |
Wytrzymałość na rozciąganie (N / mm2): |
> 420 |
Materiał: |
Miedź niklowa |
Kształt: |
okrągły |
rozmiar: |
0,01-10 mm |
Wytrzymałość na rozciąganie (N / mm2): |
> 420 |
Cuprothal 294/Alloy 294/MWS-294 copper nickel constantan wire CuNi44
Copper nickel resistance heating wire, which has low electric resisitance, good heat-resistant and corrosion-resistant, easy to be processed and lead welded. It is used to make the key components in the thermal overload relay, low resistance thermal circuit breaker, and the electrical appliances. It is also an important material for electrical heating cable. It's similar as s type cupronickel.
The more composition of Nickel,the more silver white the surface to be.
Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm

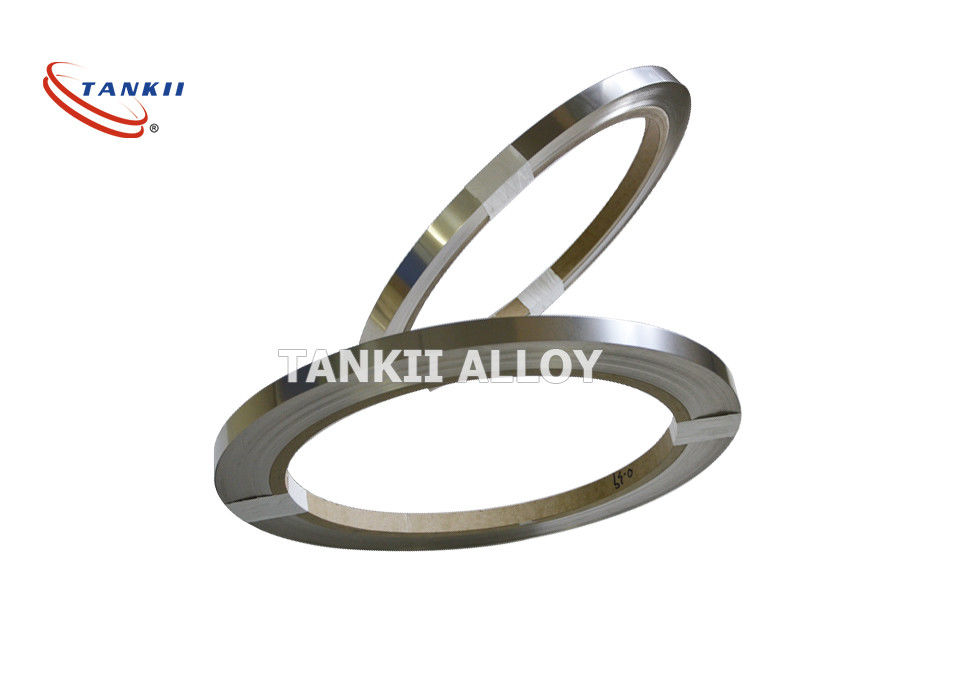

Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm
Chemical Content(%) CuNi44
Ni | Mn | Fe | Si | Cu | Other | ROHS Directive | |||
Cd | Pb | Hg | Cr | ||||||
44 | 1.50% | 0.5 | - | Bal | - | ND | ND | ND | ND |
Mechanical Properties CuNi44
Max Continuous Service Temp | 400 ºC |
Resistivity at 20ºC | 0.49 ± 5% ohm*mm2/m |
Density | 8.9 g/cm3 |
Temperature Coefficient of Resistance | < -6 ×10-6/ºC |
EMF VS Cu (0~100ºC) | -43 μV/ºC |
Melting Point | 1280 ºC |
Tensile Strength | Min 420 Mpa |
Elongation | Min 25% |
Micrographic Structure | Austenite |
Magnetic Property |
Non. |
Copper nickel alloy series:
CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23,CuNi30, CuNi34, CuNi44.
Also named NC003, NC005, NC010, NC012, NC015, NC020, NC025, NC030, NC035, NC040, NC050.
