Szczegóły Produktu
Miejsce pochodzenia: Chiny
Nazwa handlowa: Tankii
Orzecznictwo: ISO9001

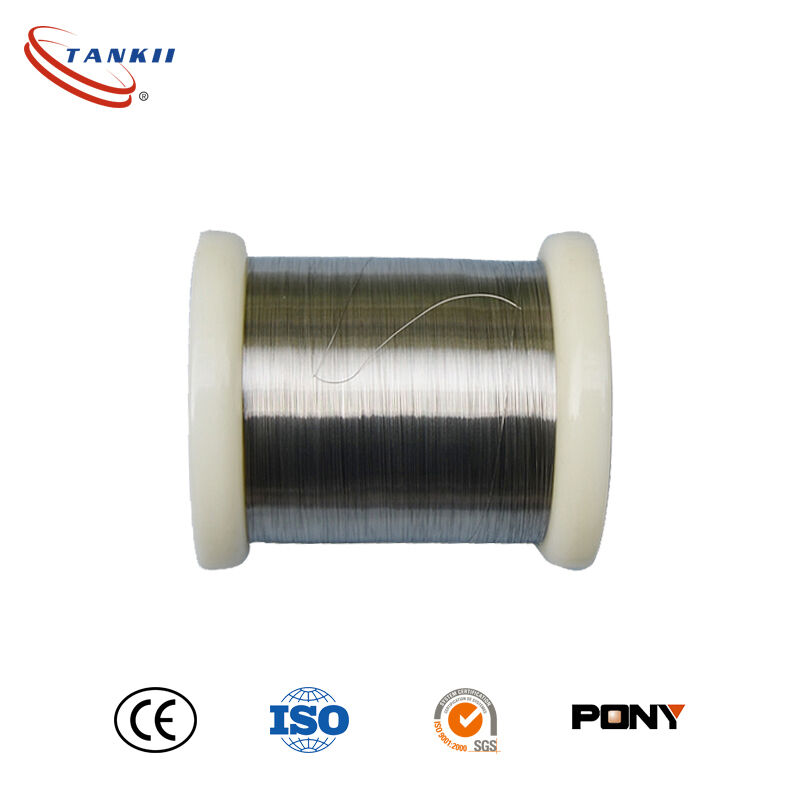

Numer modelu: drut z czystego niklu
Dokument: Tankii Alloy Catalog.pdf
Warunki płatności i wysyłki
Minimalne zamówienie: 10 kg
Cena: 26-30USD/Kg
Szczegóły pakowania: Sprawa
Czas dostawy: 15-25 dni
Zasady płatności: T/T, D/P, D/A, L/C, Western Union
Możliwość Supply: 2000 kg / miesiąc
Próbka: |
Bezpłatny |
Średnica: |
0,025 mm |
Powierzchnia: |
Jasny |
Stan: |
Miękki 1/4H 1/2H twardy |
wydłużenie: |
35% |
Gęstość: |
8,89 g/cm3 |
Próbka: |
Bezpłatny |
Średnica: |
0,025 mm |
Powierzchnia: |
Jasny |
Stan: |
Miękki 1/4H 1/2H twardy |
wydłużenie: |
35% |
Gęstość: |
8,89 g/cm3 |
Grade:Ni200,Ni201,N4,N6
High ductility
Excellent corrosion resistance
good mechanical strength
Nickel foil and nickel strip for battery
Pure nickel grade: Ni200,Ni201, N4,N6
Alloy Description
Nickel 200/201 is most widely used grade, generally specified for transistor caps, anodes for electronic tubes, leads of electronic components / Lead-in-Wires for lamps and for Wire-Mesh. Also used in strip form for various applications including Ni-Cd batteries.
Condition of Supply
Nickel 200, 201 and 205 are supplied in the following conditions:
Cold Drawn, Special Temper.
Cold Drawn, Annealed. Straightened and Cut Lengths.
Note:
NUS N02201 (ASTM B 162) same as N4 (GB/T 2054).
NUS N02200 (ASTM B 162) same as N6 (GB/T 2054).
Forms
Coil - Strip, Foil, Ribbon
Wire - Profile, Round, Flat, Square
rod, bar, forgings, plate, sheet
Chemical composition
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
| N4 | 99.9 | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 | 0.04 |
| N6 | 99.6 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
| Ni201 | 99.0 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
| Ni200 | 99.0 | 0.20 | 0.30 | 0.30 | 0.15 | / | 0.01 | / | 0.40 |
Nickel Foil Capabilities
| Grade | Pure Nickel Strip 99.6% / 99.9% |
| Thickness | 0.002 to 2.50 mm |
| Tolerances | +/- 5% (special tolerances is available) |
| Width | Up to 350mm wide |
| Coil size | Up to 80 kg without welds |
| Temper Ranges | Annealed to Full Hard |
Nickel Foil Product Precision
| Thickness | Thickness allowance | Burr height | Width scope and tolerance | |||||
| 2≤w<10 | 10≤w<50 | 50≤w<100 | 100≤w<150 | 150≤w<200 | 200≤w | |||
| 0.02≤t<0.05 | ±0.003 | ≤0.005 | ± 0.05 |
±0.10 | ±0.15 | ±0.20 | ±0.30 | ±0.50 |
| 0.05≤t<0.1 | ±0.005 | ≤0.01 | ||||||
| 0.1≤t<0.2 | ±0.008 | ≤0.015 | ||||||
| 0.2≤t<0.3 | ±0.012 | ≤0.02 | ||||||
| 0.3≤t<0.4 | ±0.015 | ≤0.03 | ± 0.10 |
±0.15 | ±0.25 | ±0.50 | ±0.80 | ±1.00 |
| 0.4≤t<0.6 | ±0.025 | ≤0.05 | ||||||
| 0.6≤t<0.8 | ±0.030 | ≤0.06 | ± 0.30 |
±0.40 | ±0.50 | ±0.50 | ±0.80 | ±1.00 |
| 0.8≤t<1.0 | ±0.040 | |||||||
| 1.0≤t<1.2 | ±0.050 | ≤0.08 | ± 0.50 |
±0.50 | ±0.80 | ±1.00 | ±1.00 | ±1.50 |
| 1.2≤t<1.4 | ±0.060 | |||||||
| 1.4≤t<1.7 | ±0.070 | ≤0.10 | ||||||
| 1.7≤t<2.0 | ±0.080 | |||||||
