Szczegóły Produktu
Miejsce pochodzenia: Chiny
Nazwa handlowa: Tankii
Orzecznictwo: ISO9001
Numer modelu: K, J, E, T, N, S, R, B
Warunki płatności i wysyłki
Minimalne zamówienie: 200 ~ 1000 m
Cena: USD0.2~2.5/m
Szczegóły pakowania: W rolce, w przypadku Carton Case/Drewniana obudowa
Czas dostawy: 5 ~ 20 dni jako zamówienia
Zasady płatności: T/t,
Możliwość Supply: 10000 m miesięcznie
Przedmiot: |

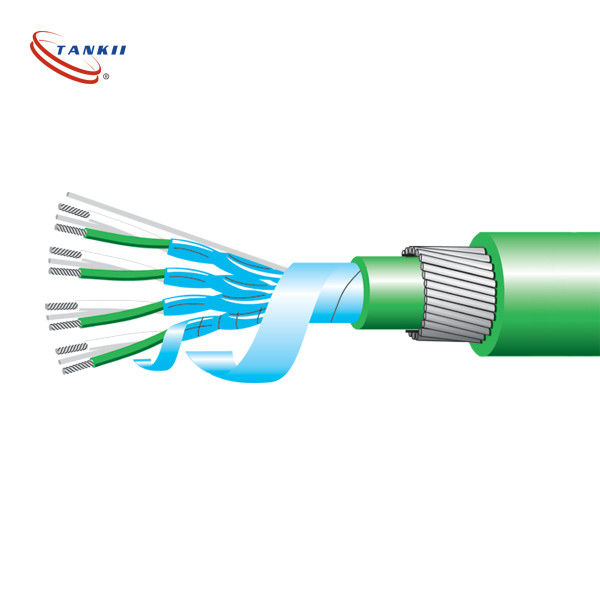

Norma IEC 6 par 8 par kabla termopary typu K, żółtego i czerwonego |
MOQ: |
500 m zgodnie z rozmiarem |
Obszar sekcji kablowej: |
0,2 mm2,0,5 mm2 1,0 mm2,1,5 mm2, |
Izolacja: |
Włókno szklane, PCV, FEP, kapton, PFA |
długość kabla: |
100m, 200m, 300m, |
Zakres temperatur: |
do 200 ° C. |
Aplikacja: |
Łączenie czujnika termopary |
Kurtka kablowa: |
Włókno szklane, PCV, FEP itp |
Przedmiot: |
Norma IEC 6 par 8 par kabla termopary typu K, żółtego i czerwonego |
MOQ: |
500 m zgodnie z rozmiarem |
Obszar sekcji kablowej: |
0,2 mm2,0,5 mm2 1,0 mm2,1,5 mm2, |
Izolacja: |
Włókno szklane, PCV, FEP, kapton, PFA |
długość kabla: |
100m, 200m, 300m, |
Zakres temperatur: |
do 200 ° C. |
Aplikacja: |
Łączenie czujnika termopary |
Kurtka kablowa: |
Włókno szklane, PCV, FEP itp |
Thermocouples are commonly used for temperature measurement in heaters and are the standard temperature measurement method in industrial/electric heating equipment.
I. Why Thermocouples are the First Choice for Heaters?
High Temperature Resistance: From low temperatures to thousands of degrees Celsius (K type 0-1250℃, N type even higher), suitable for electric heating elements, air ducts, furnace bodies, mold temperature controllers, ovens, and injection molding heating coils.
Fast Response: Contact temperature measurement, rapid heating and cooling, suitable for constant temperature control.
Durable and Robust: Armored structure resists vibration and high-temperature oxidation, suitable for long-term continuous heating conditions.
Compatible with Temperature Controllers: Standard temperature controllers directly support K, E, J, and PT100; simply connect and use.
II. Which Heaters Require Thermocouples?
Industrial electric heating elements, heating coils, ceramic heaters
Hot air heaters, duct-type electric heaters
Injection molding machines, extruders, mold heating
High-temperature ovens, industrial electric furnaces, heat treatment furnaces
Conductor materials:
Thermocouple cables come in several variations, primarily distinguished by their insulation materials and construction to suit different environmental conditions and applications.
Here are the main types:
Each type is chosen based on specific operational requirements, such as temperature range, chemical exposure, and mechanical durability.
| Technical Parameter | Value |
|---|---|
| Product Name | Thermocouple Extension Wire |
| Cable Type | Extension or Compensation cable |
| Connector Type | Miniature, Micro, Etc. |
| Insulation | FEP/PFA/ fiberglass /PVC, Silicone, Etc. |
| Cable Length | 100m, 200m, 300m |
| Voltage Rating | 220V |
| Cable Color | Chinese /USA/ JIS/ Germany/ IEC color coding available, |
| Connector Material | K, J, T, E, N, Etc. |
| Temperature Range | Up to 1000℃ |
Q: What is the brand name of this Thermocouple Cable?
A: The brand name of this Thermocouple Cable is Tankii.
Q: What are the different model numbers available for this Thermocouple Cable?
A: The different model numbers available for this Thermocouple Cable are KX/KC, JX, EX, TX, NX, SC
Q: Where is this Thermocouple Cable manufactured?
A: This Thermocouple Cable is manufactured in China.
Q: What are the temperature ranges supported by this Thermocouple Cable?
A: The temperature ranges supported by this Thermocouple Cable vary depending on the model number. Please refer to the product specifications for more information.
Q: Is this Thermocouple Cable suitable for use in harsh industrial environments?
A: Yes, this Thermocouple Cable is designed to be durable and reliable in harsh industrial environments.
