Szczegóły Produktu
Miejsce pochodzenia: Chiny
Nazwa handlowa: TANKII
Orzecznictwo: ISO 9001
Numer modelu: 0CR23AL5
Warunki płatności i wysyłki
Minimalne zamówienie: 10
Cena: negocjowalne
Szczegóły pakowania: drewno + szpule + karton
Czas dostawy: 10-25 dni roboczych
Zasady płatności: T/T
Możliwość Supply: 500t/rok
Typ stopu: |
Fekralny |
Grubość: |
0,05-5,0 mm |
Szerokość: |
2-300 mm |
Powierzchnia: |
Jasne, walcowane na zimno |
Stan: |
Miękkie wyżarzane / twarde |
Oporność: |
1,35 Ω·mm²/m |
Gęstość: |
7,25 g/cm3 |
Maksymalna temperatura robocza: |
1250°C |
Aplikacje: |
Piece przemysłowe, urządzenia do obróbki cieplnej, piece ceramiczne, elektryczne elementy grzejne, s |
Typ stopu: |
Fekralny |
Grubość: |
0,05-5,0 mm |
Szerokość: |
2-300 mm |
Powierzchnia: |
Jasne, walcowane na zimno |
Stan: |
Miękkie wyżarzane / twarde |
Oporność: |
1,35 Ω·mm²/m |
Gęstość: |
7,25 g/cm3 |
Maksymalna temperatura robocza: |
1250°C |
Aplikacje: |
Piece przemysłowe, urządzenia do obróbki cieplnej, piece ceramiczne, elektryczne elementy grzejne, s |

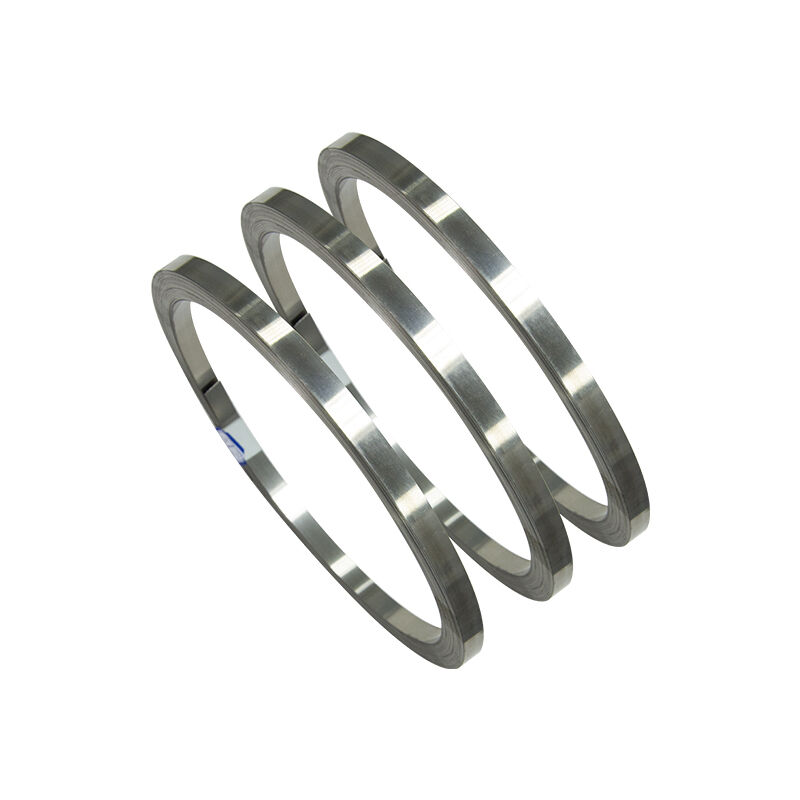

0Cr23Al5 FeCrAl Heating Resistance Alloy Strip
0Cr23Al5 FeCrAl resistance heating strip is a ferritic iron-chromium-aluminum alloy with excellent oxidation resistance and high temperature performance. It is widely used for manufacturing industrial furnace heating elements, electric heating equipment, heat treatment furnaces and various resistance heating applications.
Typical applications form Alloy135 are used in home appliances and industrial furnace,and kinds of elements in heaters and dryers.
Normal composition%
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.06 | 0.025 | 0.025 | 0.70 | Max 0.6 | 20.5~23.5 | Max 0.60 | 4.2~5.3 | Bal. | - |
Typical Mechanical properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 485 | 670 | 23 |
Typical Physical properties
| Density (g/cm3) | 7.25 |
| Resistivity at 20ºC(мкОм*м) | 1.3-1,4 |
| Conductivity coefficient at 20ºC (WmK) | 13 |
| Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/ºC |
| 20 ºC- 1000ºC | 15 |
| Specific heat capacity | |
| Temperature | 20ºC |
| J/gK | 0.46 |
| Melting point (ºC) | 1500 |
| Max continuous operating temperature in air (ºC) | 1250 |
| Magnetic properties | non-magnetic |
Temperature Factor of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC | 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1 | 1.002 | 1.007 | 1.014 | 1.024 | 1.036 | 1.056 | 1.064 | 1.070 | 1.074 | 1.078 | 1.081 | 1.084 | - |
Style of supply
| Alloy135W | Wire | D=0.03mm~8mm | ||
| Alloy135R | Ribbon | W=0.4~40mm | T=0.03~2.9mm | |
| Alloy135S | Strip | W=8~250mm | T=0.1~3.0mm | |
| Alloy135F | Foil | W=6~120mm | T=0.003~0.1mm | |
| Alloy135B | Bar | Dia=8~100mm | L=50~1000mm | |
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
