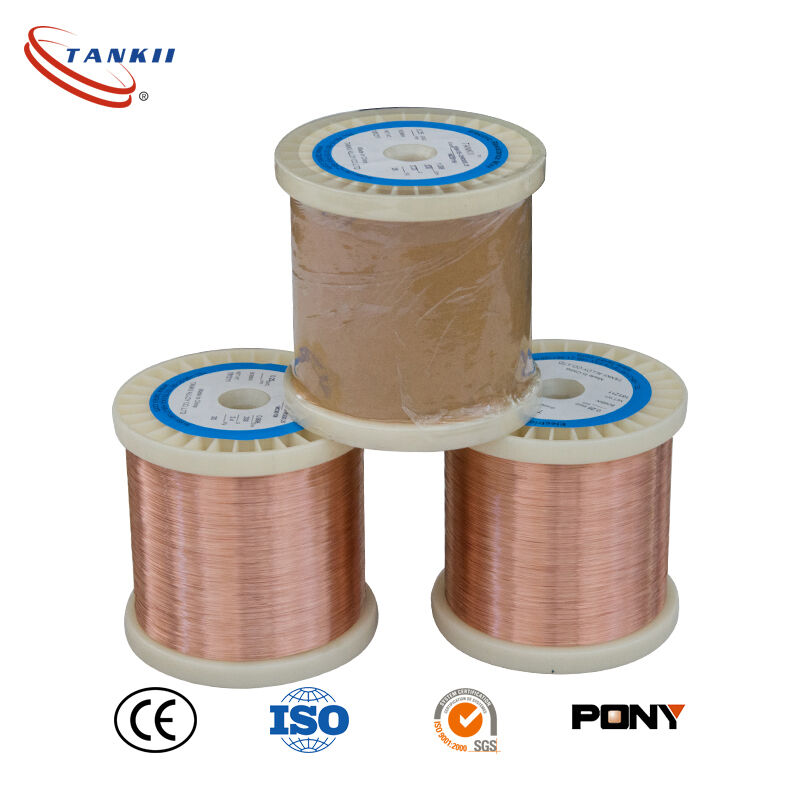

6J12 Precision Manganin 47 Resistance Wire Excellent Long Term Stability for Standard Resistor & Metrology Measuring Instruments

Szczegóły Produktu

Miejsce pochodzenia: Chiny

Nazwa handlowa: Tankii

Orzecznictwo: ISO 9001

Numer modelu: mangan 47

Warunki płatności i wysyłki

Minimalne zamówienie: 30 kg

Cena: negotiate

Szczegóły pakowania: Karton

Czas dostawy: 2-3 tygodnie

Możliwość Supply: 5000 ton rocznie

Uzyskaj najlepszą cenę
Skontaktuj się teraz
Specyfikacje
Podkreślić:
Tworzywo:
mangan 47
Model:
6J12
Kształt:
drut/taśma/folia
Gęstość:
8,4 g/cm3
Rezygnacyjność:
47μΩ/cm
Wydłużenie:
≥15%
TCR:
-3-+20(*10^﹣6/℃)
Pole elektromagnetyczne vs Cu μV/℃:
≤1
Tworzywo:
mangan 47
Model:
6J12
Kształt:
drut/taśma/folia
Gęstość:
8,4 g/cm3
Rezygnacyjność:
47μΩ/cm
Wydłużenie:
≥15%
TCR:
-3-+20(*10^﹣6/℃)
Pole elektromagnetyczne vs Cu μV/℃:
≤1
Opis
6J12 Precision Manganin 47 Resistance Wire Excellent Long Term Stability for Standard Resistor & Metrology Measuring Instruments
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire

Chemical Content, %
Ni Mn Fe Si Cu Other RoHS Directive
CD Pb Hg Cr
- 10.5-12.5 - - Bal - ND ND ND ND

Mechanical Properties
Max Continuous Service Temp 0-45ºC
Resisivity at 20ºC 0.49±0.03ohm mm2/m
Density 8.g/cm3
Temp Coefficient of Resistance at 20 ºC -80~+80α×10-6/ºC
Melting Point 1450ºC
Tensile Strength(Hard) 635 MPa(min)
Tensile Strength,N/mm2   Annealed,Soft 340~535
Elongation 15%(min)
EMF vs Cu, μV/ºC (0~100ºC) 2
Micrographic Structure Austenite
Magnetic Property Non
Micrographic Structure Ferrite
Magnetic Property Magnetic
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
(6J8 6J11 6J12 6J13) High Precision Resistance Alloy Wire
